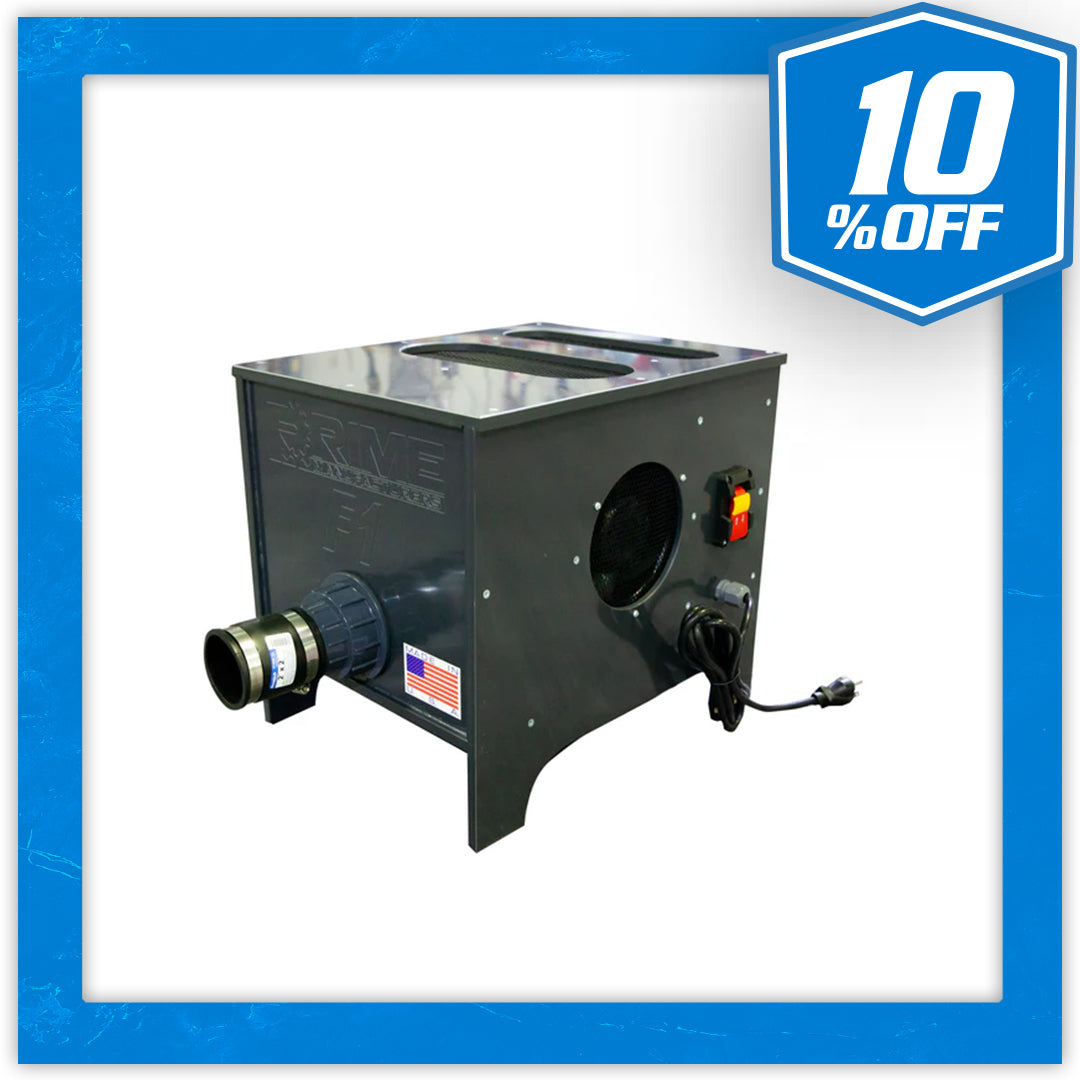

F1 Vacuum System

The F-Series Vacuum Pump Option is designed for high performance and reliability. The F4 model, in particular, is known for its exceptional quality and durability. The F-Series is the most industrial true single-phase vacuum pump in the CNC machine industry, capable of handling corrosive chemical gases efficiently.

The F-Series is built in the United States from quality components and produces a massive amount of CFM while producing competitive HG. This results in excellent hold-down performance where larger vacuum pumps can’t fit the budget or power constraints.

The F1 is designed specifically for use with the ShopSabre 23 CNC router.

Dimensions:
-14” Wide (relief valve side + 2.5”)
-16” Tall
-18” Long (PVC inlet side + 5.5”)

*Approx. 137 Open Flow CFM
*All F1 Systems are 220V Single Phase
