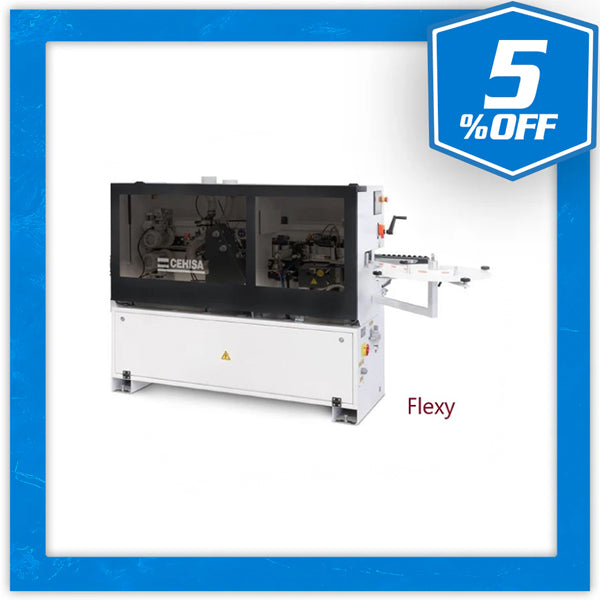

Cehisa Flexy Series Edgebanders
Cehisa Flexy Series Edgebanders
The Cehisa FLEXY series is a compact edgebander providing performances and a finishing quality more proper of an industrial machine, at an affordable price, even for the small carpentry shops. The FLEXY series is ideal for workshops where space and cost are specifically important.
Specifications:
- Edging Material Thickness: 0.4-2mm
- Panel Thickness: 8-50mm
- Panel Length: 120mm- unlimited
- Panel Width: 75mm- unlimited
- Feed Speed: 7m/min (~22.97ft/min)
- Working Pressure: 6-7kg/cm2 (~99.56 PSI)
- Power: 3-Phase (Single Phase optional)
Features:
- Panels: Particleboard, plywood, MDF; 8-50mm thick
- Edges: Melamine, PVC, ABS, PP, wood, Formica, acrylic; in rolls from 0.4-3mm (for a panel thickness up to 20mm)
- Adhesives: EVA and PUR (optional)
- Equipment: High frequency motors controlled by independent electronic converters, input spindle, glue pot, end trim, top & bottom trim, corner rounding and PLC controlled by LCD color touchscreen.
Standard Configuration:
- HF motors controlled by independent electronic inverters
- Electrical parts, meeting the respective CE rules
- Control panel with touchscreen display and integrated PLC
- Dust collectors on all working stations
- Pressure beam with closer wheels (less space between them)
- Fixed type roller support with big size workpieces
- Air blow nozzles for tracers cleaning
- Cabin/housing for all working units
View the full proposal/information packets here:

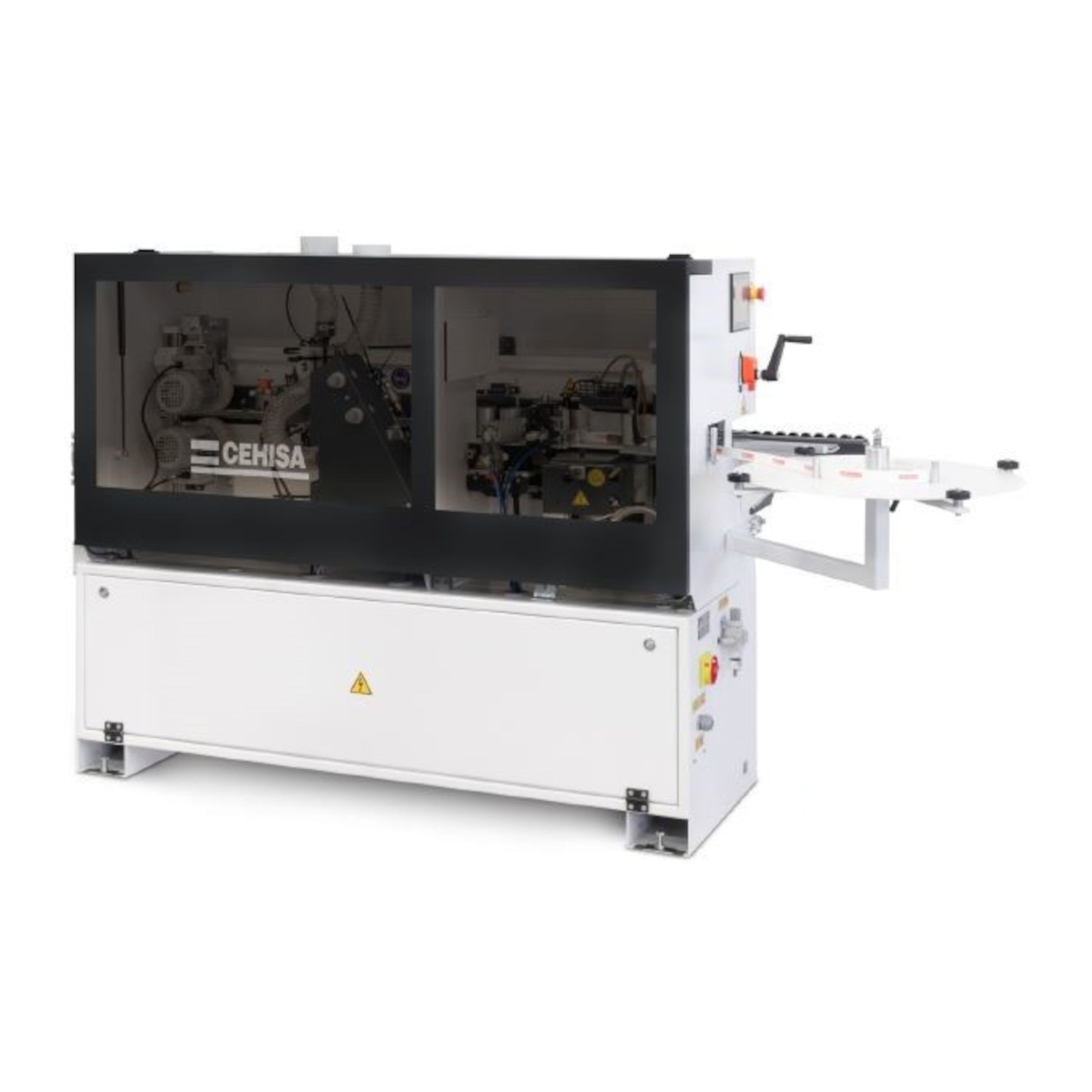

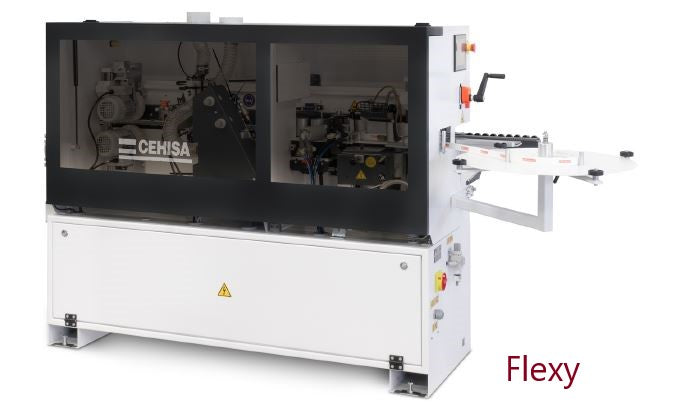

Cehisa Flexy Series Edgebander

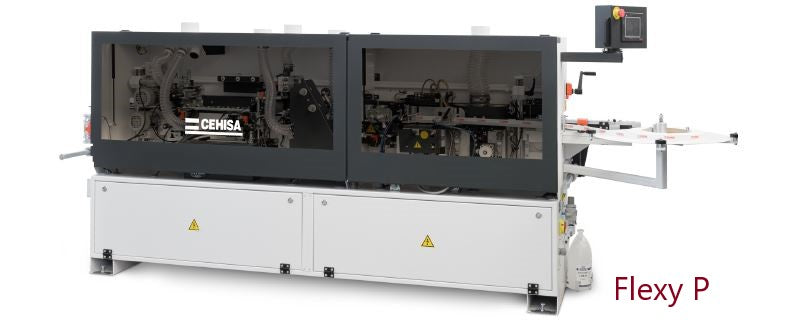

Cehisa Flexy P Series Edgebander
*Posted pricing includes required installation with a technician from Adwood Corporation
Check out the FLEXY Series YouTube video here
