7.5HP 80-Gallon Compressor, Fully Packaged with 40CFM Air Dryer
7.5HP 80-Gallon Compressor, Fully Packaged with 40CFM Air Dryer

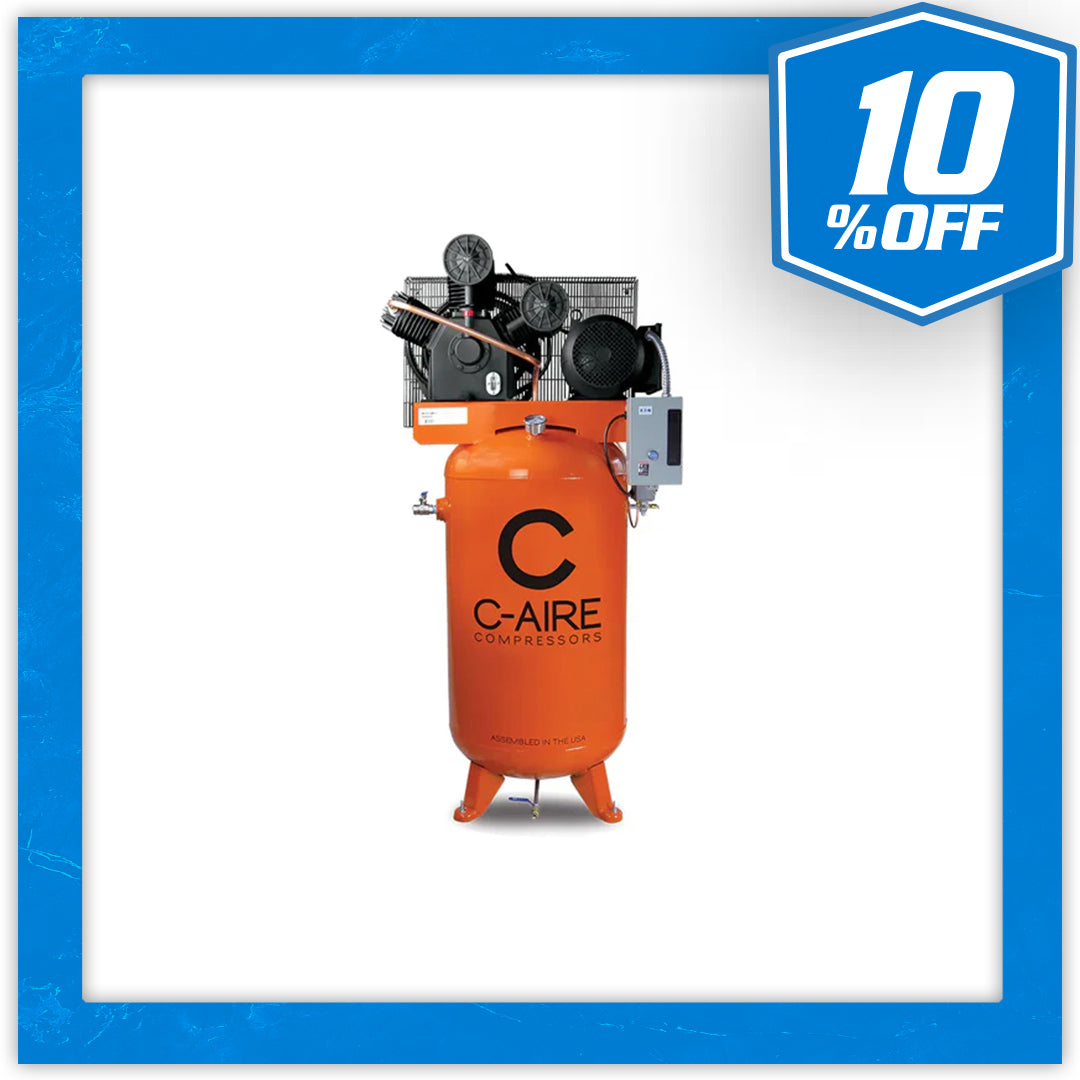

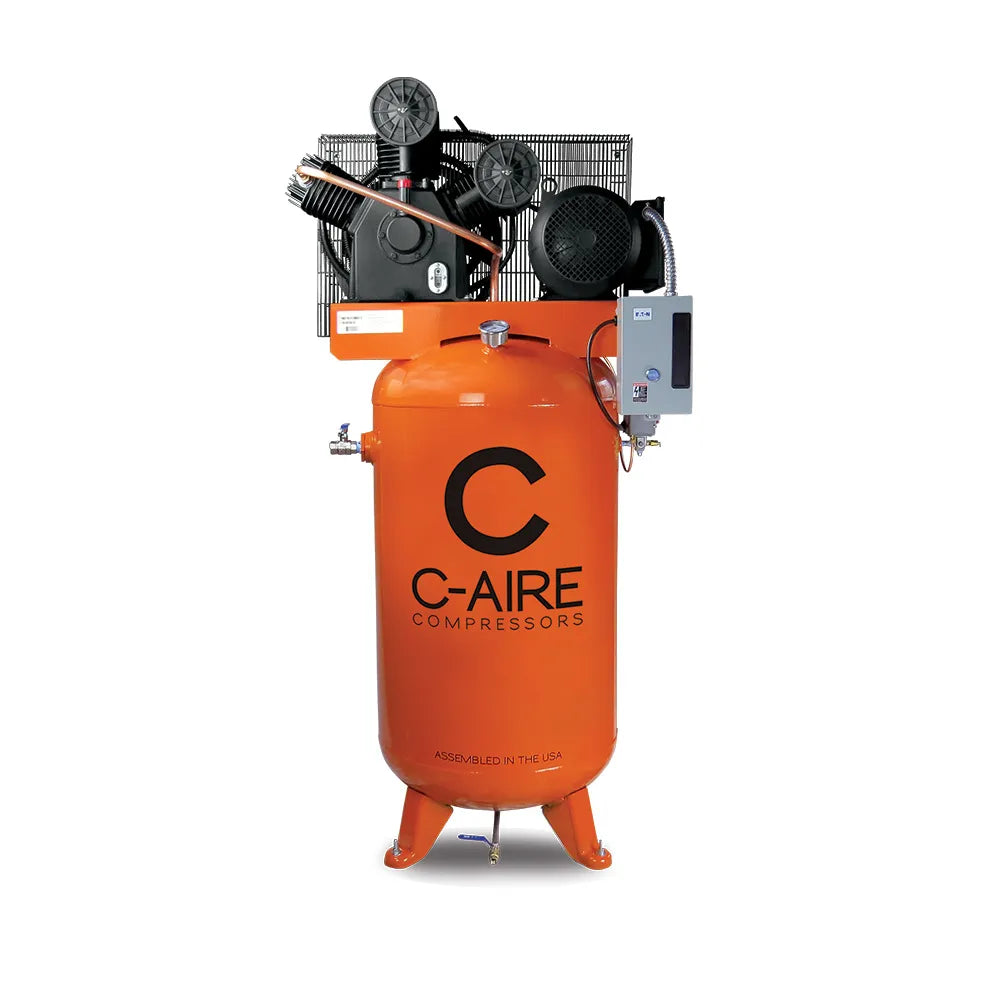

The C-Aire 7.5 HP 80 Gallon Simplex unit features a low-RPM cast iron pump with an aluminum head for efficient cooling, Sandvik Swedish steel reed valves, finned intercooler tubes, and an easy-to-read oil sight glass. It also has a large frame heavy-duty motor to ensure reliable performance and long life. This unit comes with a pre-wired magnetic starter and is ready for installation and start-up. The 7.5 HP 80 Gallon Simplex is ETL Listed to UL 1450 and CSA C22.2 NO. 68.
Other features include:
– Eight-foot intercooler between the first and second stage of compression to cool the air down and increase efficiency.

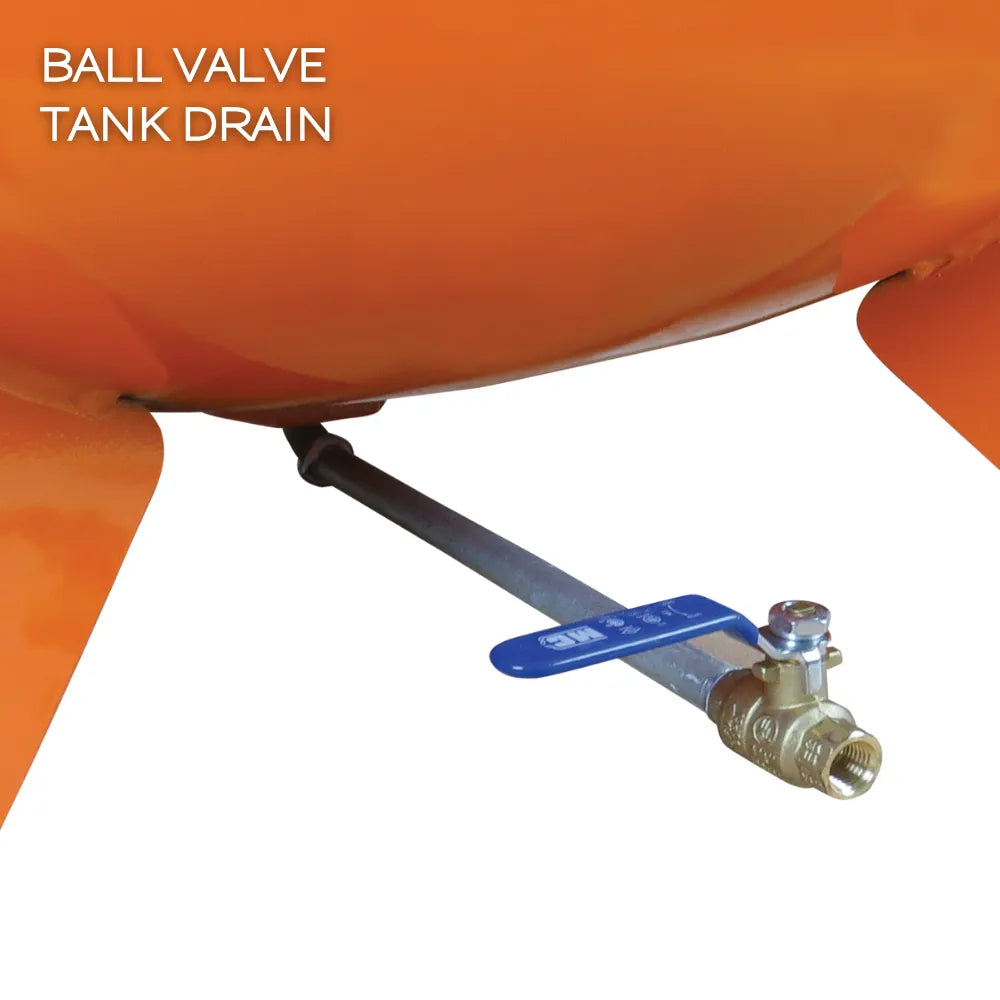

– Instead of having to reach under the tank to drain the condensate with a petcock, we have a ball valve that’s easily accessible.
– Large liquid-filled air pressure gauge for better accuracy.
– The serial tag has commonly needed information, such as oil capacity, air filter part number, and our phone number.
– The low-RPM pump is very quiet, runs cool, and lasts longer than our competitors.
Specifications:
– 7.5 horsepower
– 2 stage
– 24 CFM @ 175 PSI
– 3-cylinder cast iron pumps
– 649 RPM pump
– 50,000 hour main bearings
– Full-synthetic oil
– 80-gallon tank
– Dimensions (LxDxH): V – 32”x23”x75” / H – 65″x23″x48″
– 600 lbs. shipping weight
Electrical Specs:
– 1760 RPM motor
– 1 Phase/230V: 35.5 FLA (60A breaker)
– 3 Phase/230V: 21.3 FLA (35A breaker)
– 3 Phase/460V: 10.6 FLA (20A breaker)
Suitable for:
– 2-3 person body shop
– 3-5 person auto repair shop
– Small manufacturing plant
– Farm

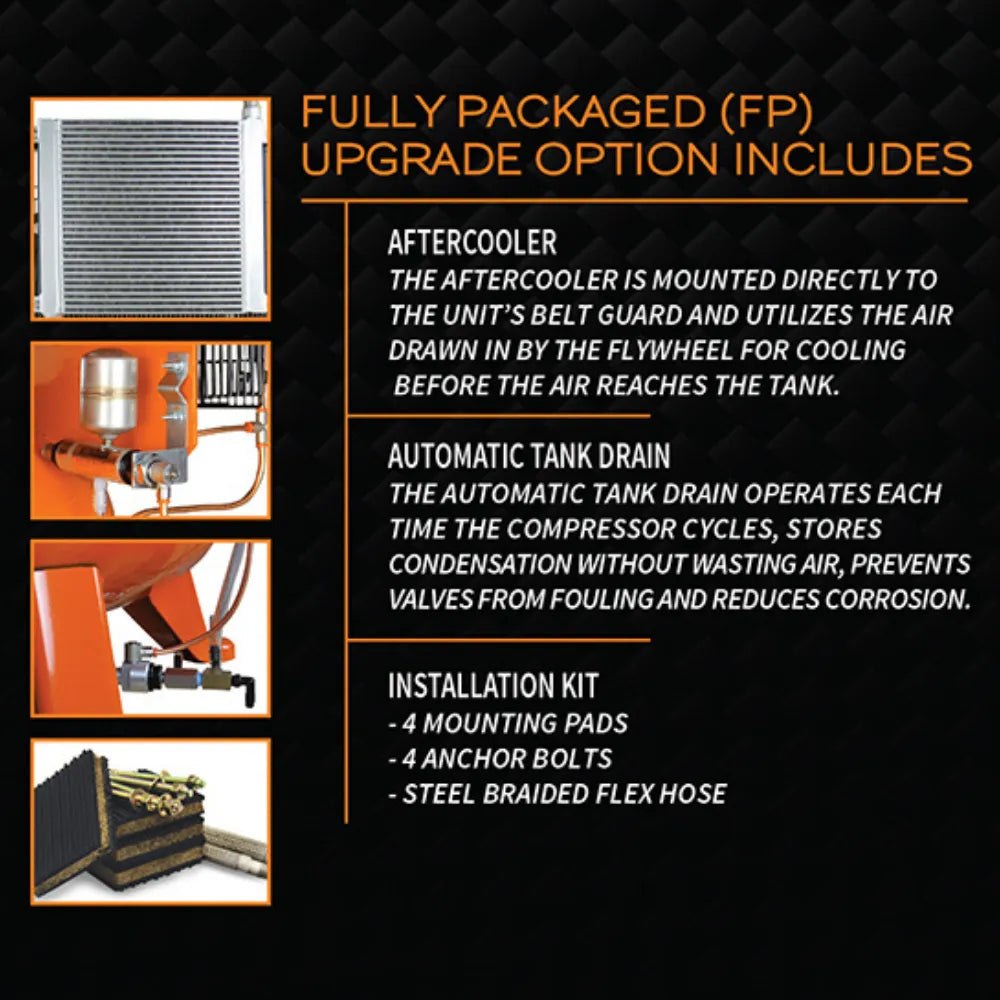

Fully Packaged Unit: Make sure your C-Aire compressor is set up correctly from the start! C-Aire’s Fully Packaged compressors include a factory-installed belt guard mounted aftercooler and moisture minder auto tank drain. This is the most affordable way to significantly reduce moisture and prolong the life and effectiveness of your pneumatic tools by removing approximately 60% of the moisture in your compressed air. The aftercooler is mounted directly to the unit’s belt guard and utilizes the air drawn in by the flywheel for cooling before the air reaches the tank. The automatic tank drain operates each time the compressor cycles, stores condensation without wasting air, prevents valves from fouling, and reduces corrosion. Fully Packaged units also include an installation kit: four mounting pads, four anchor bolts, and a 12″ steel braided flex hose. The mounting pads increase the longevity of your compressor by providing vibration dampening which relieves stress on the unit. The steel braided flex hose offers a flexible connection to your piping system.
For inquiries regarding C-Aire Compressors or related products, contacting ShopSabre for guidance would be advisable. Our team can assist in selecting the appropriate unit, provide insights on features, and address any inquiries about C-Aire Compressor systems.
