5HP 60-Gallon Simplex Piston Compressor Only
5HP 60-Gallon Simplex Piston Compressor Only

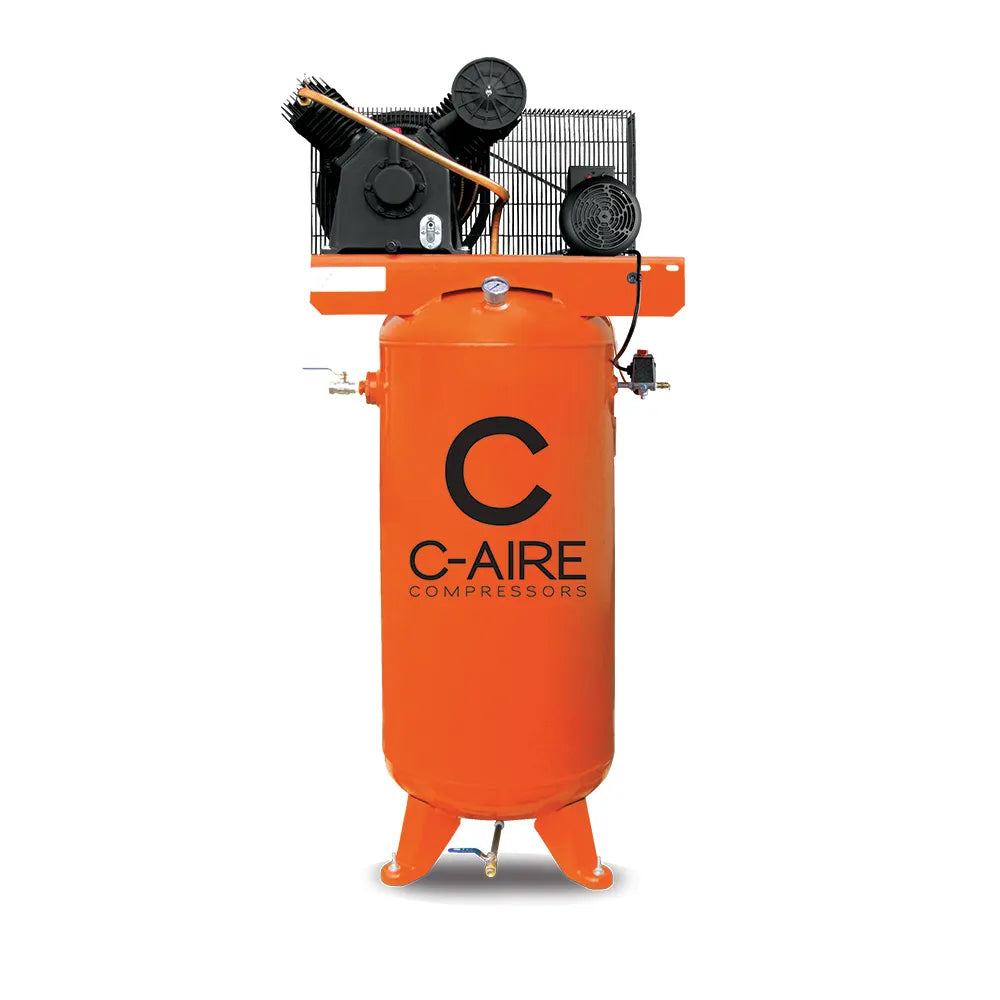

The C-Aire 5 HP 60 Gallon Simplex unit features a low-RPM cast iron pump with an aluminum head for efficient cooling, Sandvik Swedish steel reed valves, finned intercooler tubes, and an easy-to-read oil sight glass. It also has a large frame heavy-duty motor to ensure reliable performance and long life. The 230V / 1 Phase version is certified with UL 1450 and CSA C22.2 NO. 68-92.
Other features include:
– Eight-foot intercooler between the first and second stage of compression to cool the air down and increase efficiency.
– Instead of having to reach under the tank to drain the condensate with a petcock, we have a ball valve that’s easily accessible.
– Large liquid-filled air pressure gauge for better accuracy.
– The serial tag has commonly needed information, such as oil capacity, air filter part number, and our phone number.
– The low-RPM pump is very quiet, runs cool, and lasts longer than our competitors.
Specifications:
– 5 horsepower
– 2 stage
– 15 CFM @ 175 PSI
– 2-cylinder cast iron pump
– 755 RPM pump
– 50,000 hour main bearings
– Full-synthetic oil
– 60-gallon tank
– Dimensions (LxDxH): V – 30”x21”x73” / H – 52”x23”x47”
– 450 lbs. shipping weight
Electrical Specs:
– 3450 RPM motor
– 1 Phase/230V: 20.3 FLA (35A breaker)
– 3 Phase/230V: 14.2 FLA (25A breaker)
– 3 Phase/460V: 6.4 FLA (15A breaker)
Suitable for:
– 1-2 person body shop
– Serious hobbyist
– Farm
3-Year Extended Warranty: Maintaining your compressor is an integral part of the longevity of your compressor’s life. Purchase the C-Aire Extended Warranty Kit the same day you purchase your C-Aire Compressor and register the extended warranty with C-Aire within 10 days of purchase. Located inside the warranty kit are enough Air Intake Filters (recommended to be changed every six months) and Compressor Oil (recommended to be changed every 12 months) to maintain your compressor through the end of year three.
For inquiries regarding C-Aire Compressors or related products, contacting ShopSabre for guidance would be advisable. Our team can assist in selecting the appropriate unit, provide insights on features, and address any inquiries about C-Aire Compressor systems.
