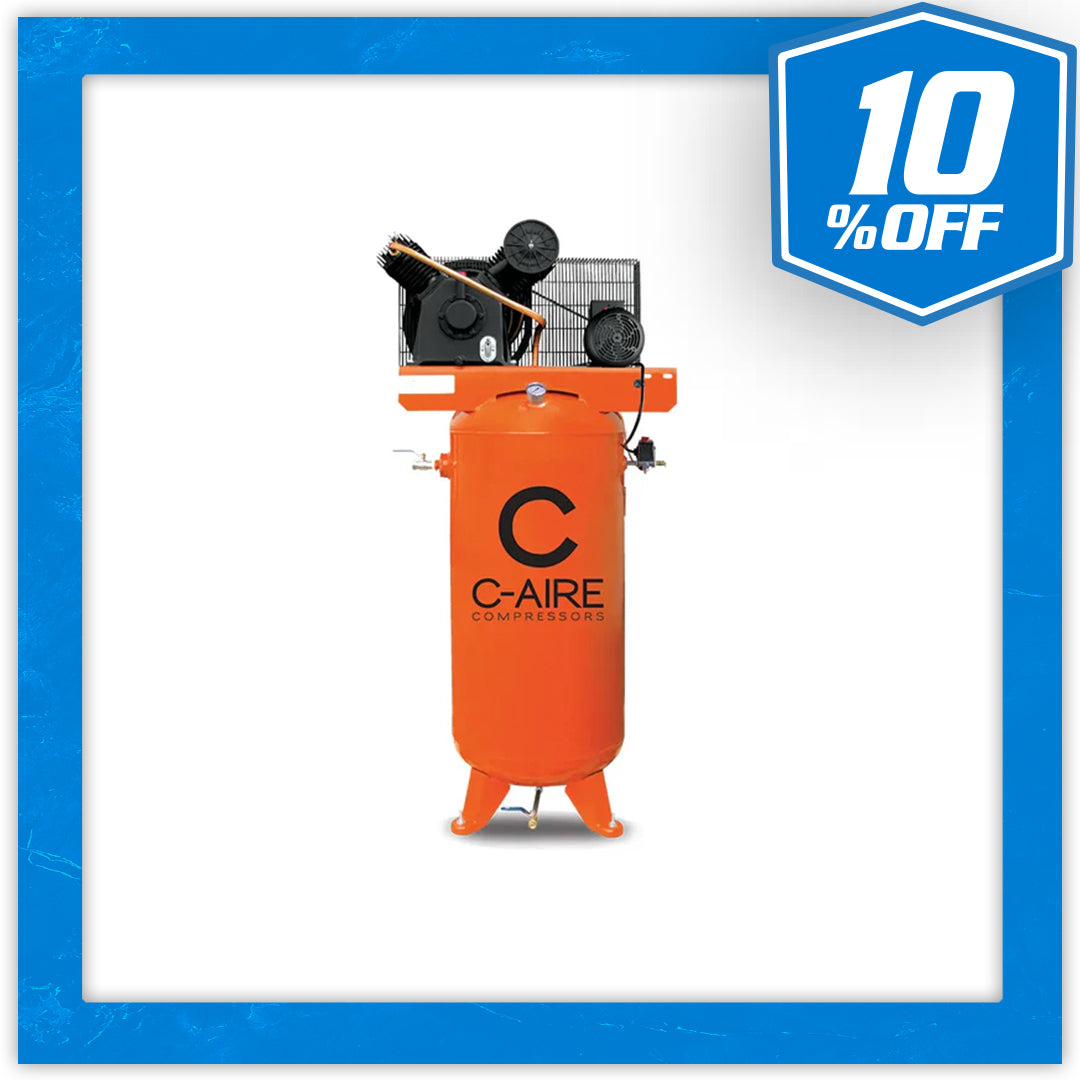

5HP 60-Gallon Simplex Piston Compressor Fully Packaged W/ 25CFM Air Dryer (3 Phase)

The C-Aire 5 HP 60 Gallon Simplex unit features a low-RPM cast iron pump with an aluminum head for efficient cooling, Sandvik Swedish steel reed valves, finned intercooler tubes, and an easy-to-read oil sight glass. It also has a large frame heavy-duty motor to ensure reliable performance and long life.

Other features include:
– Eight-foot intercooler between the first and second stage of compression to cool the air down and increase efficiency.
– Instead of having to reach under the tank to drain the condensate with a petcock, there is a ball valve that’s easily accessible.
– Large liquid-filled air pressure gauge for better accuracy.
– The serial tag has commonly needed information, such as oil capacity, air filter part number, and our phone number.
– The low-RPM pump is very quiet and runs cool

Specifications:
– 5 horsepower
– 2 stage
– 15 CFM @ 175 PSI
– 2-cylinder cast iron pump
– 755 RPM pump
– 50,000 hour main bearings
– Full-synthetic oil
– 60-gallon tank
– Dimensions (LxDxH): V – 30”x21”x73” / H – 52”x23”x47”
– 450 lbs. shipping weight

Electrical Specs:
– 3450 RPM motor
– 3 Phase/230V: 14.2 FLA (25A breaker)
– 3 Phase/460V: 6.4 FLA (15A breaker)

- 115v For Air Dryer

Suitable for:
– 1-2 person body shop
– Serious hobbyist
– Farm

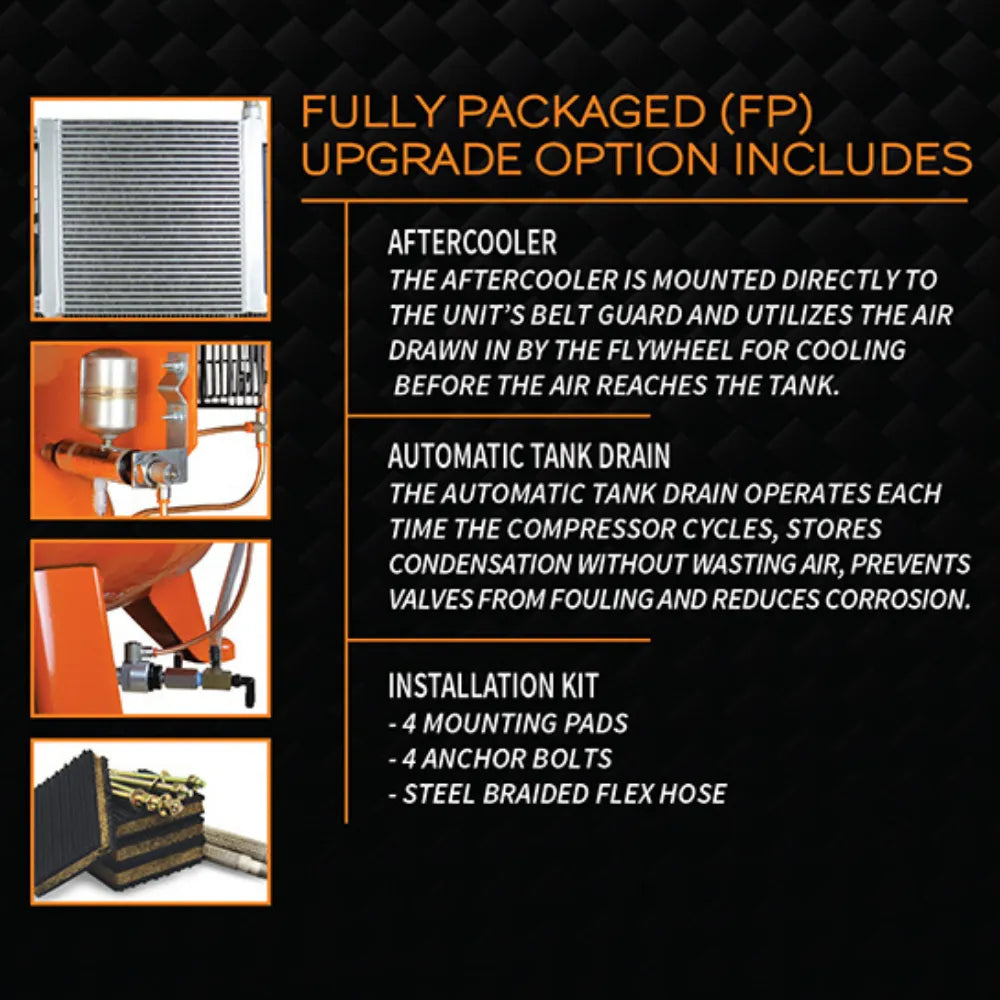

Fully Packaged Unit: This Fully Packaged compressor include a factory-installed belt guard mounted aftercooler and moisture minder auto tank drain. This is the most affordable way to significantly reduce moisture and prolong the life and effectiveness of your pneumatic tools by removing approximately 60% of the moisture in your compressed air. The aftercooler is mounted directly to the unit’s belt guard and utilizes the air drawn in by the flywheel for cooling before the air reaches the tank. The automatic tank drain operates each time the compressor cycles, stores condensation without wasting air, prevents valves from fouling, and reduces corrosion. This kit also comes with an installation kit: four mounting pads, four anchor bolts, and a 12″ steel braided flex hose. The mounting pads increase the longevity of your compressor by providing vibration dampening which relieves stress on the unit. The steel braided flex hose offers a flexible connection to your piping system.
